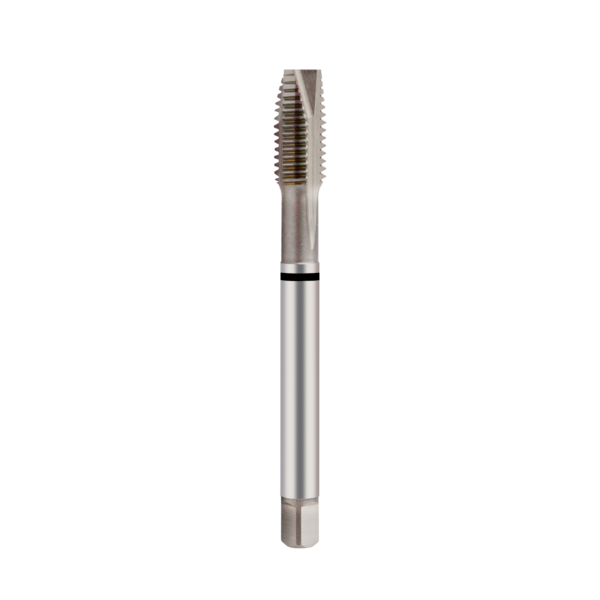

M22 x 2.5 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81402200
TM81402200 - M22 x 2.5
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN376

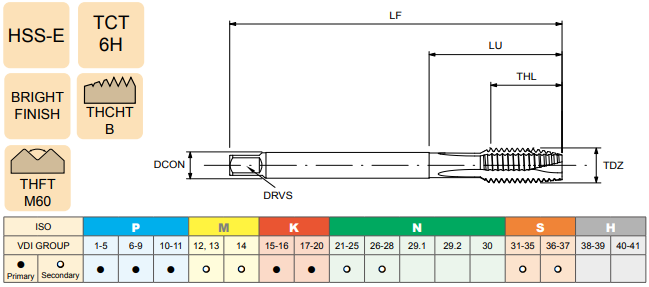

| Size (TDZ) | M22 |
| Pitch (TP) | 2.5mm |
| Thread Length (THL) | 32mm |
| Overall Length (LF) | 140mm |
| Neck Length (LU) | 54mm |
| DCON | 18.0mm |
| DRVS | 14.5mm |
| Flutes | 4 |
| Tapping Drill (PHD) | 19.5mm |
