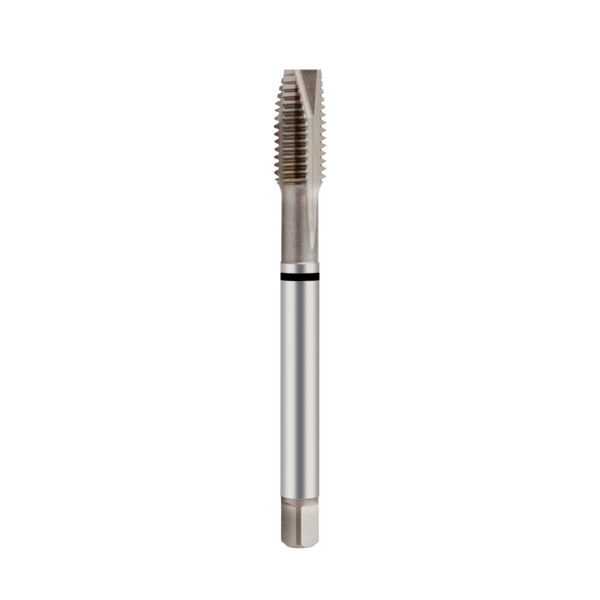

M24 x 3.0 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81402400
TM81402400 - M24 x 3.0
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN376

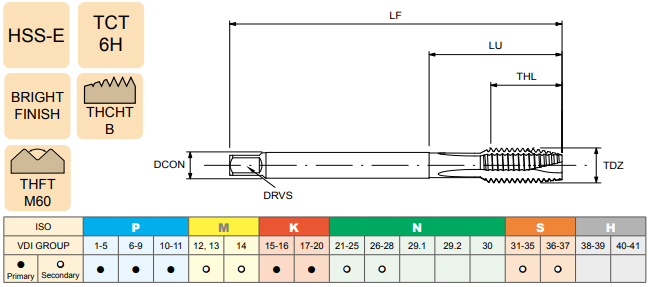

| Size (TDZ) | M24 |
| Pitch (TP) | 3.0mm |
| Thread Length (THL) | 34mm |
| Overall Length (LF) | 160mm |
| Neck Length (LU) | 60mm |
| DCON | 18.0mm |
| DRVS | 14.5mm |
| Flutes | 4 |
| Tapping Drill (PHD) | 21.0mm |
