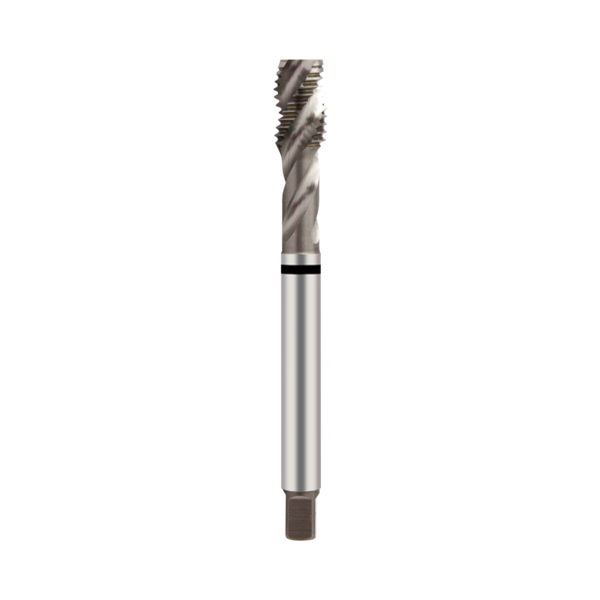

M30 x 3.5 Metric Coarse Spiral Flute Unimaster Bright Machine Tap for General Use (Black)
TM80403000
TM80403000 - M30 x 3.5
- For universal use on most materials
- Spiral Flute for Blind Holes
- Metric Coarse
- Bright Finish
- DIN376

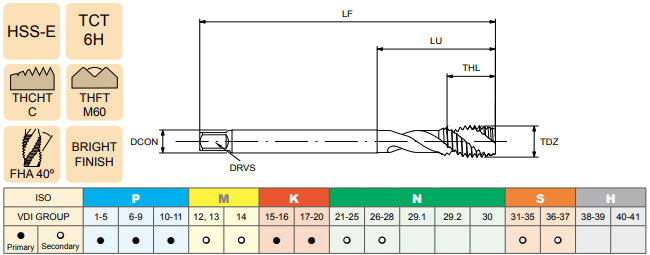

| Size (TDZ) | M30 |
| Pitch (TP) | 3.5mm |
| Thread Length (THL) | 35mm |
| Overall Length (LF) | 160mm |
| Neck Length (LU) | 70mm |
| DCON | 22.0mm |
| DRVS | 18.0mm |
| Flutes | 4 |
| Tapping Drill (PHD) | 26.5mm |
