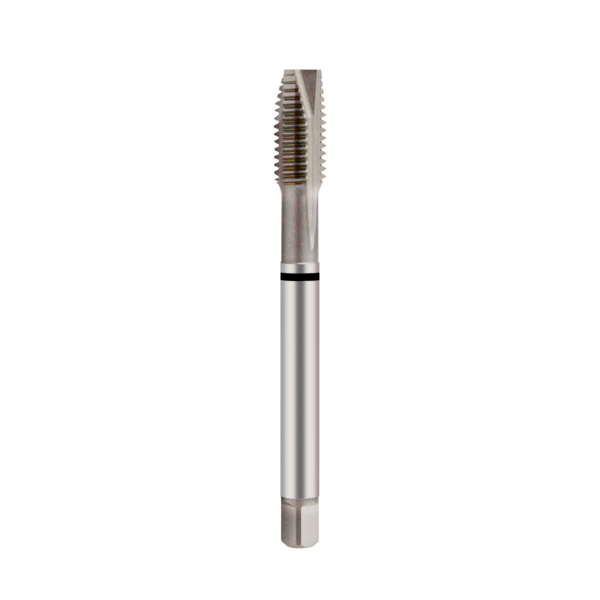

M4 x 0.7 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81400400
TM81400400 - M4 x 0.7
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN371

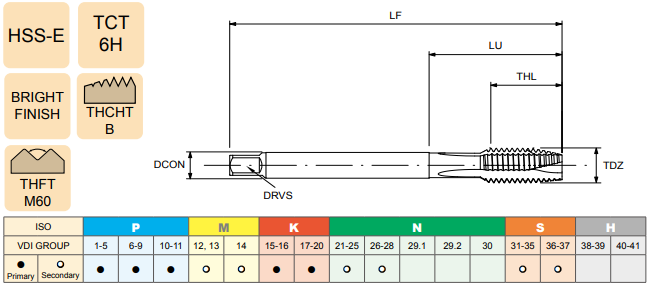

| Size (TDZ) | M4 |
| Pitch (TP) | 0.7mm |
| Thread Length (THL) | 13mm |
| Overall Length (LF) | 63mm |
| Neck Length (LU) | 21mm |
| DCON | 4.5mm |
| DRVS | 3.4mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 3.3mm |
