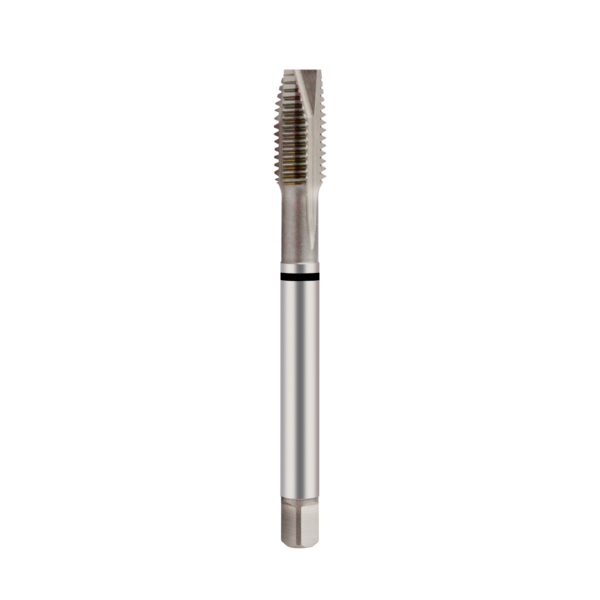

M5 x 0.8 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81400500
TM81400500 - M5 x 0.8
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN371

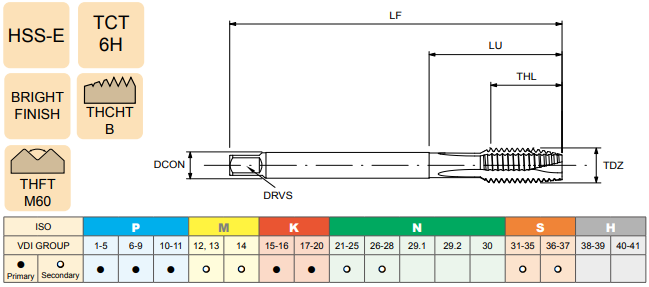

| Size (TDZ) | M5 |
| Pitch (TP) | 0.8mm |
| Thread Length (THL) | 15mm |
| Overall Length (LF) | 70mm |
| Neck Length (LU) | 25mm |
| DCON | 6.0mm |
| DRVS | 4.9mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 4.2mm |
