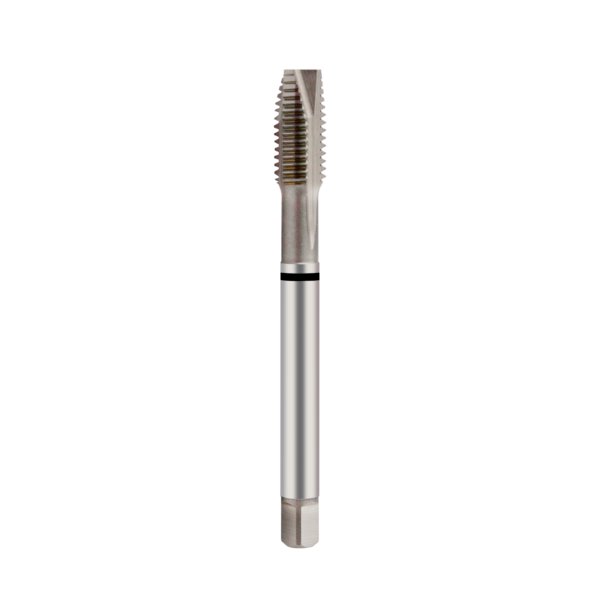

M6 x 1.0 Metric Coarse Spiral Point Unimaster Bright Machine Tap for General Use (Black)
TM81400600
TM81400600 - M6 x 1.0
- For universal use on most materials
- Spiral Point for Through Holes
- Metric Coarse
- Bright Finish
- DIN371

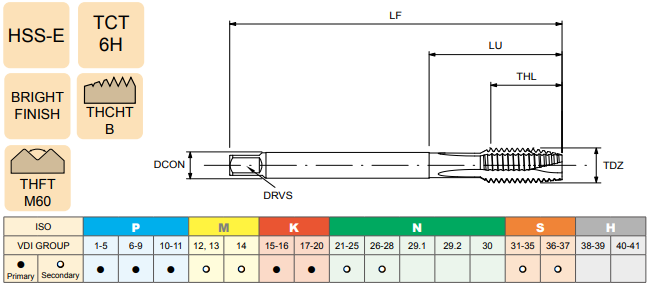

| Size (TDZ) | M6 |
| Pitch (TP) | 1.0mm |
| Thread Length (THL) | 17mm |
| Overall Length (LF) | 80mm |
| Neck Length (LU) | 30mm |
| DCON | 6.0mm |
| DRVS | 4.9mm |
| Flutes | 3 |
| Tapping Drill (PHD) | 5.0mm |
