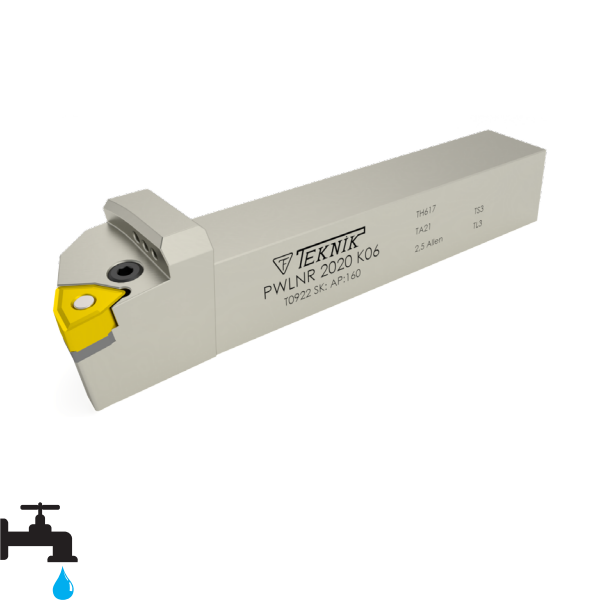

PWLNR 2020 K06-IKG1/8 95° External Turning Holder with Through Coolant For WNMG 0604 Inserts - Teknik
AP160
PWLNR 2020 K06-IKG1/8 95°
For WNMG 0604 Inserts - Through Coolant - AP160

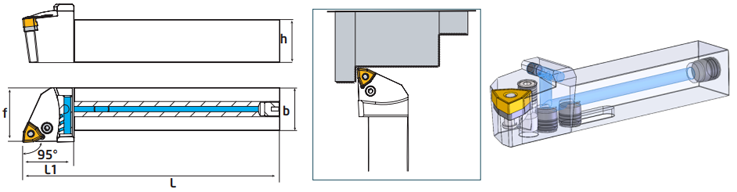

| L | 125mm |
|
L1 |
30mm |
| h | 20mm |
| f | 25mm |
| b | 20mm |
| Insert | WNMG 0604 |
| Screw | TH617 |
| Shim | TA021 |
| Lock Pin | TS3 |
| Lever | TL3 |
| Allen Key | 2.5 Allen |
