80.963.A40 Haimer 3D Zero Master Sensor / Tester With Integrated Short Adapter HSK-A40

80.963.A40

Haimer

  • £456.00


Due to new duty charges from the EU all Haimer sensors may not be available on a guaranteed next day delivery.

If you order is urgent, please contact the team and we can let you know the best we can do.

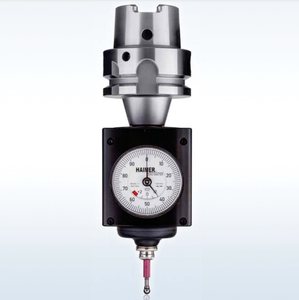

3D-Sensor Zero Master

Simple workpiece measuring with less space in the machine.

Version:

  • With integrated short adapter in version HSK-A40
  • No further manual runout adjustment necessary! Delivery with preset runout accuracy at the probe tip of 0.01 mm
  • Measuring accuracy: 0.01 mm
  • Short and long probe tips available, no tool change necessary
  • No re-calibration of the sensor is needed
  • Enhanced overrun distance
  • IP 67 waterproof

Application:

  • For small Milling and EDM machines (isolated probe)
  • For workpiece-reset and length measuring
  • Any direction approach (X-, Y-, Z-axis)


Please take note: The given measuring precision of 0.01 mm only applies if the original HAIMER probe tips are used.

Included in delivery: Zero Master with short probe tip Ø 4 mm

Technical data subject to change without prior notice.

Technical drawing

Version HSK-A40
L [mm] 131.6
Accuracy [mm]
0.01
Order No.
80.963.A40
