Softsynchro 1 - HSK-A50 (4.5mm - 10mm) For ER20 (GB) Collets - Emuge Franken
F3151C03.1

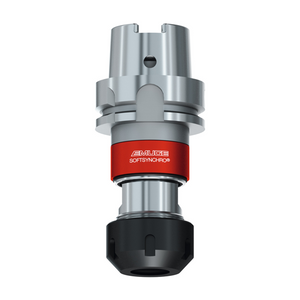

Softsynchro® 1 - HSK-A50 (For ER20 (GB) Collets)
Collet holder Softsynchro® for use with threading tools on machines with synchronised spindle.
Product features and benefits:
- For use with collets type ER or ER-GB.
- The minimum length compensation in push and pull direction compensates for minimum pitch differences between synchronous spindle and tool.
- The minimum length compensation prevents thread miscuts and improves tool life.
- Can be used up to 50 bar with internal coolant supply (ICS)
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

| Type | Softsynchro® 1 |
| Cutting Area (M) | M4-M12 |
| D1 | 4.5mm - 10mm |
| Collet Size | ER20 (GB) |
| D2 | HSK-A50 |
| D | 34mm |
| D3 |
34mm |
| L1 ER-GB | 93.5mm |
| L2 | 25mm |
| L4 | 5mm |
| G | M16x1 |
| C | 0.5mm |
| T | 0.5mm |
