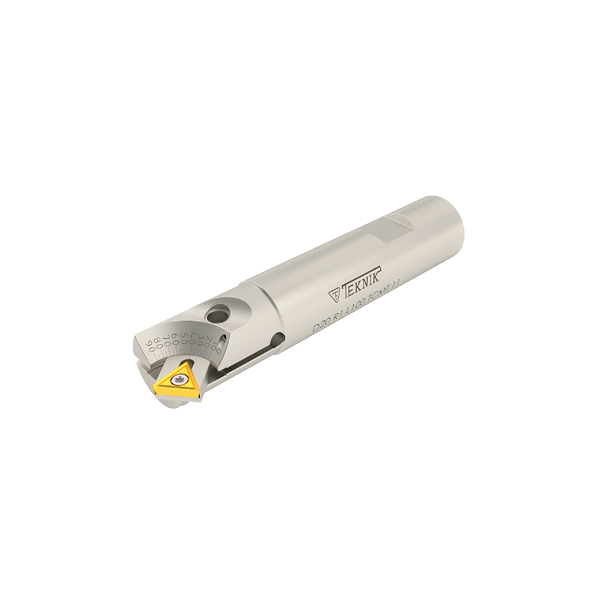

5-27mm Indexable Angled Chamfer Mill 20mm Shank 10-80° 100mm OAL for TCMT 11 - AH10 Teknik
AH10
TCMT 110402 - 5-27mm Dia. - 20mm Shank - 10-80° - 100mm OAL
| Product Code | D020-R1-L100 |
| D min | 5mm |
| D max | 27mm |
| d | 20mm |
| L | 100mm |
| Y° | 10-80 |
| Insert | TCMT 110204 |
| Fleximill | AH20 |
| Clamp Screw | TC063 M2.5 x 7 |
| Fleximill Screw | M5x12 |
| Torx Key | T8 |
