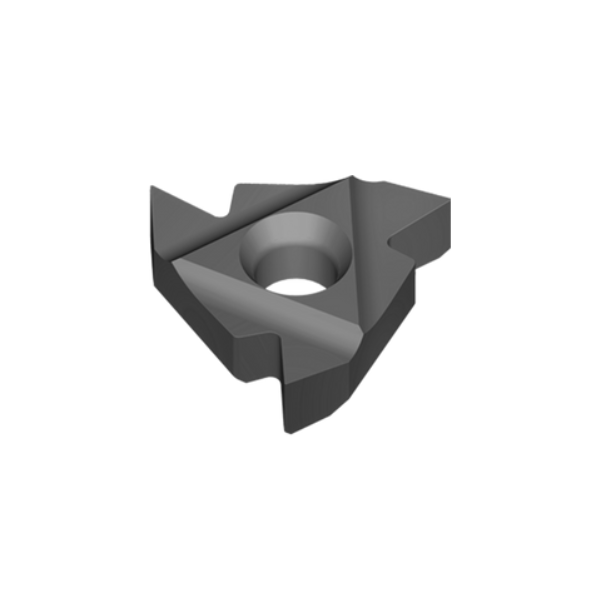

2ER0.25ISOVTX External ISO Metric RH Threading Insert VTX Grade - Vargus
021-05702
ISO Metric - 2ER0.25ISOVTX - 11ER0.25ISOVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

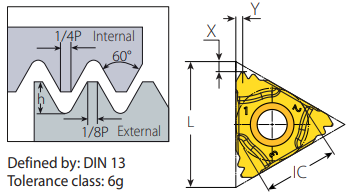

| IC | 1/4" (11ER) |
|
L |
11mm |
| Pitch (mm) | 0.25mm |
| h min | 0.14mm |
| X | 0.4mm |
| Y | 0.2mm |
| Tolerance | 6g |
| Anvil | - |
| Toolholder | NL..-2 |
