25x23mm Shank - A2™ Cut-Off Tool Block To Hold 26mm Blade - Kennametal
1878091

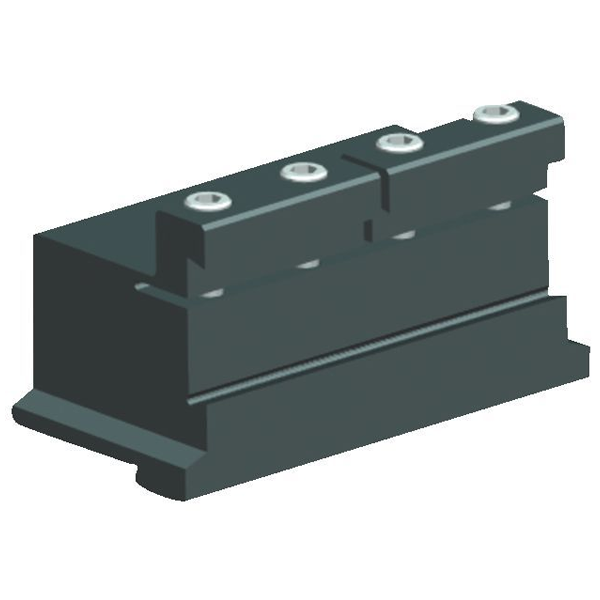

A2™ Cut-Off Tool Block
A2TEN2523X26
Features and Benefits:
- Integral Clamp
- Grooving and cut-off
- To hold 26mm Cut-Off Blade

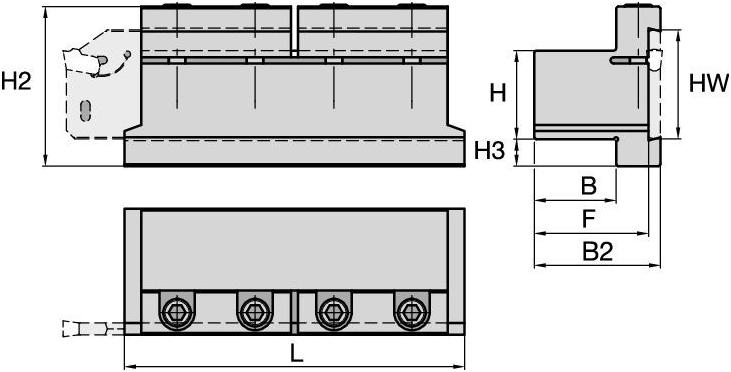

| Blade Height (HW) | 26mm |
| Shank Height (H) | 25mm |
| Shank Width (B) | 23mm |
| F | 33.5mm |
| Overall Height (H2) | 41mm |
| Overall Width (B2) | 38mm |
| Head Bottom Offset (H3) | 3mm |
| Overall Length (L) | 86mm |
| Clamp Screw ID Drive Size | 5mm |
1878091
25X23MM SHANK - A2™ CUT-OFF TOOL BLOCK TO HOLD 26MM BLADE - KENNAMETAL
