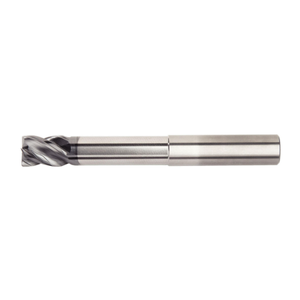

8mm x 1.0r 4 Flute Radiused Extended Neck HARVI™ 1 TE End Mill - Kennametal
6929444
HARVI™ 1 TE
Radiused - 4 Flutes - Extended Neck - Plain Shank - Metric
Features and Benefits:
- Proprietary end face design.
- Proprietary core design — Increasing tool stability.
- Innovative end face design.
- Proprietary relief — with AVF-Technology.
- Proprietary flute design.
| Cutting Diameter (D1) | 8.0mm |
| Shank (D) | 8.0mm |
| Neck Diameter (D3) | 7.52mm |
| 1st Maximum Cutting Depth (AP1MAX) | 19.0mm |
| Usable Length (L3) | 40.0mm |
| Overall Length (L) | 76.0mm |
| Corner Radius (Re) | 1.0r |
| Number of Flutes (Z) | 4 |
| Grade | KCSM15 |
