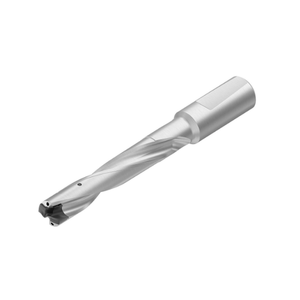

14.5mm KSEM™ Drill Body WN50 Shank (Insert Seat B) - 5 x D - Kennametal

1792325

KENNAMETAL

  • £199.81


KSEM™ WN50

Metric - Modular Drilling - Whistle Notch™ Shank (WN) - 5 x D

Features and Benefits:

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert.
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation.
  • Use designated insert blade with each drill body.
  • Drill shipped with central lock screw and wrench.
Drill Diameter M (D1) 14.5mm
Drill Diameter Maximum (D1MAX) 14.5mm
Length/Diameter Ratio (L4/D1) 5
Overall Length (L) 154.0mm
Flute Length (L3) 100.0mm
Maximum Drilling Depth (L4) 80.0mm
Drill Point Length (L5) 2.302mm
Shank Length (LS) 50.0mm
Shank Diameter (D) 20.0mm
Insert Seat Size (SSC) B
1792325
