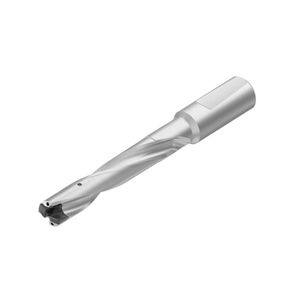

20.0mm KSEM™ Drill Body WN50 Shank (Insert Seat 3) - 5 x D - Kennametal

1246017

KENNAMETAL

  • £275.60


KSEM™ WN50

Metric - Modular Drilling - Whistle Notch™ Shank (WN) - 5 x D

Features and Benefits:

  • The central locking screw mechanism ensures secure clamping of the insert, resulting in process safety and long tool life for both the drill body and the insert.
  • Internal coolant supply directly to the cutting zone, for extended tool life and efficient chip evacuation.
  • Use designated insert blade with each drill body.
  • Drill shipped with central lock screw and wrench.
Drill Diameter M (D1) 20.0mm
Drill Diameter Maximum (D1MAX) 20.5mm
Length/Diameter Ratio (L4/D1) 5
Overall Length (L) 197.0mm
Flute Length (L3) 137.0mm
Insert Gage Length (L1) 126.7mm
Maximum Drilling Depth (L4) 100.0mm
Drill Point Length (L5) 3.2mm
Shank Length (LS) 56.0mm
Shank Diameter (D) 25.0mm
Insert Seat Size (SSC) 3
1246017
