L112 - BT1 Dormer T-Handle Tap Wrench (M1 - M8)

L112BT1

Dormer Pramet

  • £26.37


L112

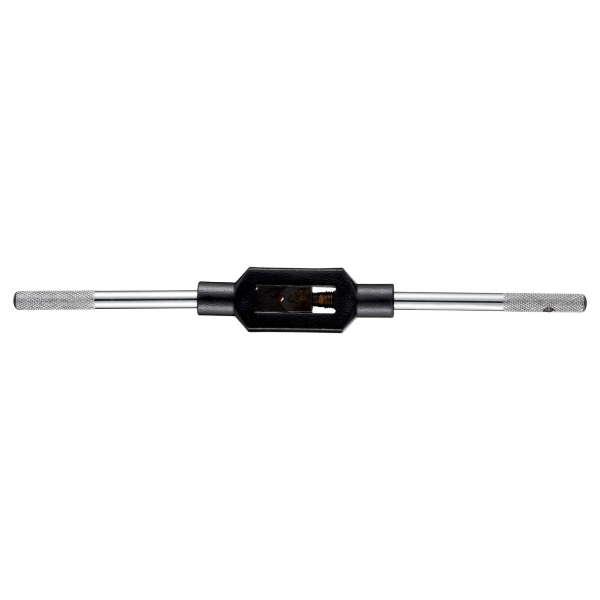

T-handle tap wrench size BT1 for taps and reamers with a square drive within a range from 1 up to 6mm

Adjustable, so one tap wrench can be used to hold several different tap sizes. The square end of the tap is inserted into the wrench which is then tightened to hold the tap securely. The two metal bars on either side of the wrench are used to rotate the tap in the hole of the workpiece to create the thread.

Internal designation number (Nr.) BT1

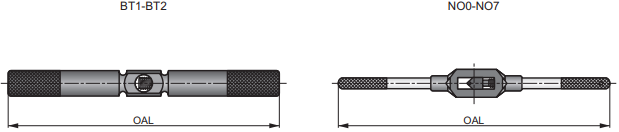

Overall Length (OAL) 105.0mm
Clamping width minimum (WSCN) 1.00mm
Clamping width maximum (WSCX) 6.50mm
Tap Range (M) M1 - M8
Tap Range (Inch) No. 0 - 5/16

L112BT1 L112 - BT1 DORMER T-HANDLE TAP WRENCH (M1 - M8)
