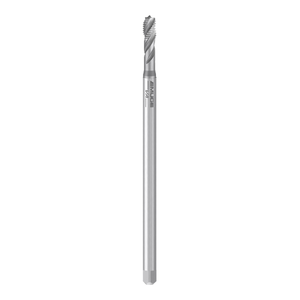

M4 x 0.7 Spiral Flute Long Series Tap Uncoated - Emuge Franken
B2503000.0040
M4-SF-VA-LS
HSSE tap for applications in many workpiece materials.
Product features and benefits:
- With extra-long shank for difficult-to-reach threads.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | M |
| Diameter (d1) | 4mm |
| Pitch | 0.7mm |
| Coolant Supply | Without |
| Geometry | VA |
| Shank Diameter (d2) | 4.5mm |
| OAL (l1) | 125mm |
| Length of cutting edge (l2) | 7mm |
| Usable length (l3) | 21mm |
| Square ■ | 3.4mm |
| Tap hole diameter | 3.3mm |
