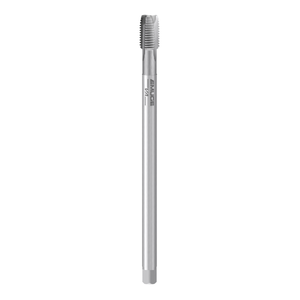

M10 x 1.5 Spiral Point Long Series Tap NT Coated - Emuge Franken
C2203000.0100
M10-SP-VA-LS-NT
HSSE tap for applications in many workpiece materials.
Product features and benefits:
- The spiral point ensures optimum chip removal in the feed direction.
- With extra-long shank for difficult-to-reach threads.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | M |
| Diameter (d1) | 10mm |
| Pitch | 1.5mm |
| Coolant Supply | Without |
| Geometry | VA |
| Shank Diameter (d2) | 7mm |
| OAL (l1) | 200mm |
| Length of cutting edge (l2) | 22mm |
| Square ■ | 5.5mm |
| Tap hole diameter | 8.5mm |
