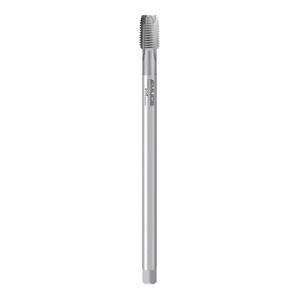

M18 x 2.5 Spiral Point Long Series Tap NT Coated - Emuge Franken
C2203000.0118
M18-SP-VA-LS-NT
HSSE tap for applications in many workpiece materials.
Product features and benefits:
- The spiral point ensures optimum chip removal in the feed direction.
- With extra-long shank for difficult-to-reach threads.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | M |
| Diameter (d1) | 18mm |
| Pitch | 2.5mm |
| Coolant Supply | Without |
| Geometry | VA |
| Shank Diameter (d2) | 14mm |
| OAL (l1) | 250mm |
| Length of cutting edge (l2) | 30mm |
| Square ■ | 11mm |
| Tap hole diameter | 15.5mm |
