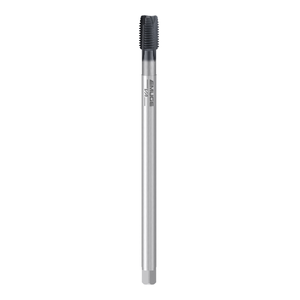

M14 x 2.0 Spiral Point Long Series Tap GLT Coated - Emuge Franken
C220C300.0114
M14-SP-VA-LS-GLT
HSSE tap for universal application in stainless steel and steel workpiece materials.
Product features and benefits:
- The spiral point ensures optimum chip removal in the feed direction.
- With extra-long shank for difficult-to-reach threads.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Thread | M |
| Diameter (d1) | 14mm |
| Pitch | 2.0mm |
| Coolant Supply | Without |
| Geometry | VA |
| Shank Diameter (d2) | 11mm |
| OAL (l1) | 224mm |
| Length of cutting edge (l2) | 26mm |
| Square ■ | 9mm |
| Tap hole diameter | 12mm |
