M14 x 2 Thread Plug Gauge Go/No-Go Metric Coarse - Emuge Franken

L0100100.0114

Emuge

  • £124.57

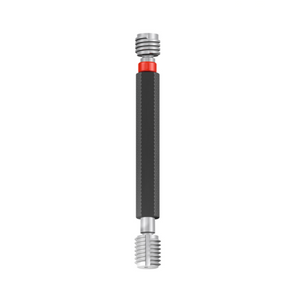

Go/no-go thread plug gauge for gauging the internal thread.

Product features and benefits:

Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
Go plug gauge with dirt groove (from Ø 5.5 mm) and removed incomplete threads for reliable gauging.
No-go plug gauge with insertion neck and free machining of thread core for precision work.
On request with coated go plug gauge body, customer-specific labelling and factory calibration certificate.

*Please note these are not available on a guaranteed next day delivery*

Thread

Dia

Pitch

Tolerance

Rotation

Standard of Dimensions

Gauge System

M

14mm

2mm

6H

R/H

Din 2280

Din ISO 1502

L0100100.0114
