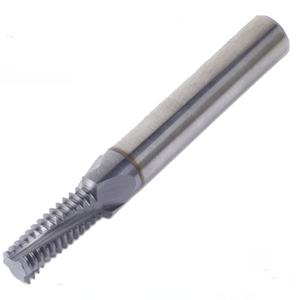

M4x0.5 2xDo - 0.5mm Pitch Internal Carbide Thread Mill - Vardex Helical
101-00028
Thread Milling TM Solid Carbide Helical IN 0.5 mm ISO Shank Diameter 4 (mm) Cutting Diameter 3 (mm) Tool Overhang 8 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Made from Micrograin Solid Carbide
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrouse
- TiCN coating for longer tool life
| Thread Standard | ISO Metic |
| Pitch | 0.5mm |
| EXT/INT | IN |
| Coolant | No |
| L | 8mm |
| L1 | 8.0mm |
| Le | 8mm |
| Cutting Dia | 3.0mm |
| Z | 3 |
| Zt | 16 |
| Grade | VTH |
| Coating | TiCN |
| Shank Dia | 4mm |
| Description | H04030L08-I0.5ISOTMVTH |
