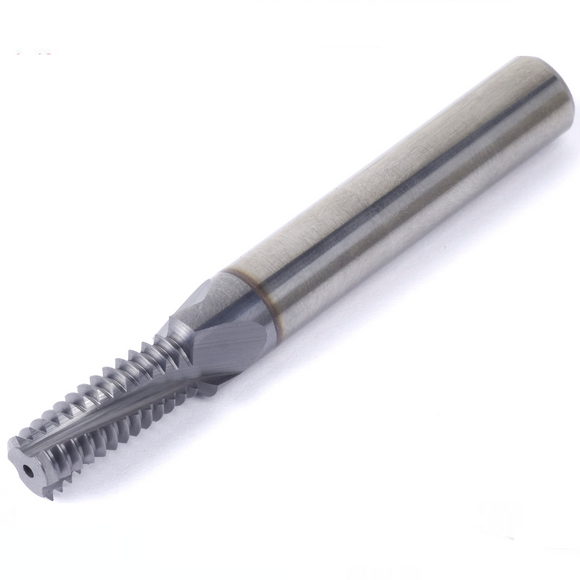

M10x1.25-2xDo - 1.25mm Pitch Metric Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00024
Thread Milling TM Solid Carbide HeliCool IN 1.25 mm ISO Shank Diameter 10 (mm) Cutting Diameter 8.5 (mm) Tool Overhang 20.63 (mm) VTH Grade
- For Internal Machining
- For Metric threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | ISO Metic |
| Pitch | 1.25mm |
| EXT/INT | IN |
| Coolant | Yes |
| L | 20.63mm |
| L1 | 20.63mm |
| Le | 20.63mm |
| Cutting Dia | 8.5mm |
| Z | 3 |
| Zt | 16 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC10085L20-I1.25ISOTMVTH |
| Shank Dia | 10mm |
104-00024 M10X1.25-2XDO - 1.25MM PITCH METRIC HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
