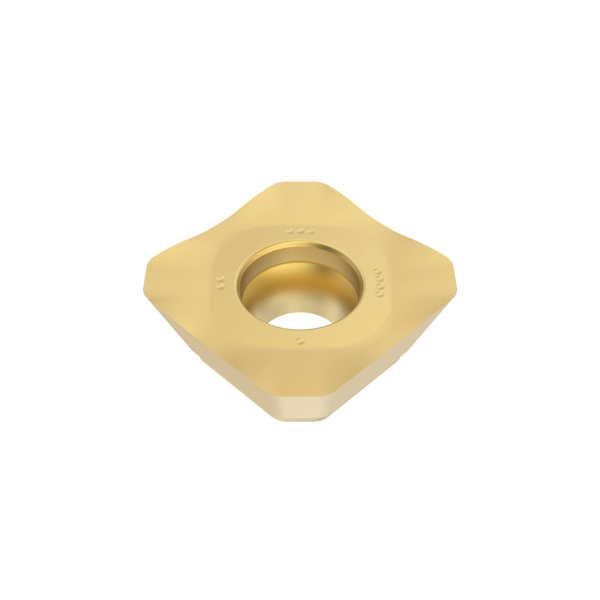

SEEX 1204AFN-M10 Carbide Milling Inserts (Pack of 10) - Grade: F40M - Seco
02426811 (C)SEEX 1204AFN-M10
Milling Cutters - Quattromill
GRADE: F40M

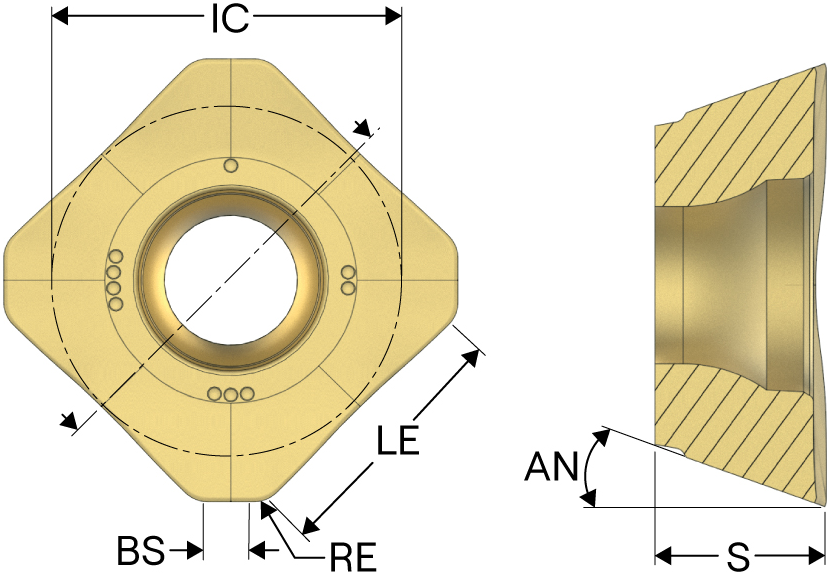

| Inscribed Circle Diameter (IC) | 12.70mm |
| Cutting Edge Effective Length (LE) | 8.70mm |
| Corner Radius (RE) | 1.12mm |
| Wiper Edge Length (BS) | 1.5mm |
| Clearance Angle Major (AN) | 20.0 deg |
| Insert Thickness (S) | 4.76mm |
02426811 (C) SEEX 1204AFN-M10 CARBIDE MILLING INSERTS (PACK OF 10) - GRADE: F40M - SECO
