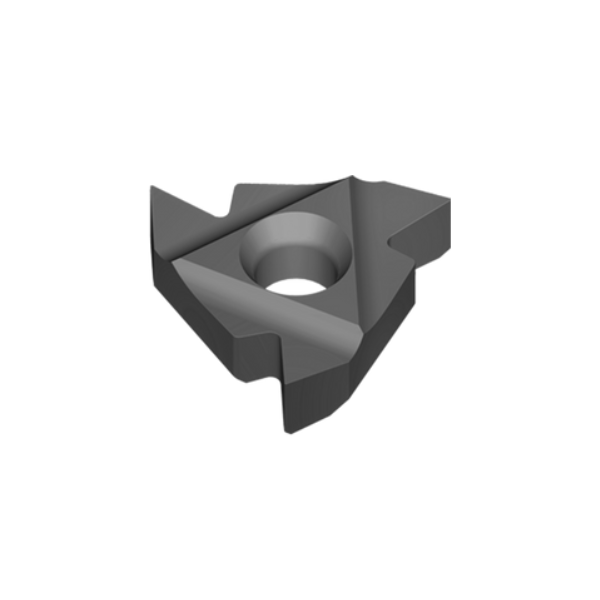

3ER18NPTVTX External NPT RH Threading Insert VTX Grade - Vargus
021-51478
NPT - 3ER18NPTVTX - 16ER18NPTVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

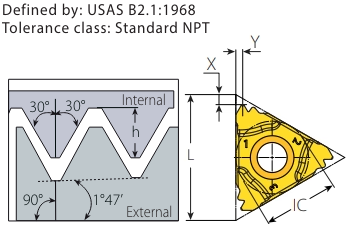

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (TPI) | 18 |
| h min | 1.01mm |
| X | 0.8mm |
| Y | 1.0mm |
| Tolerance | Standard NPT |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-51478
