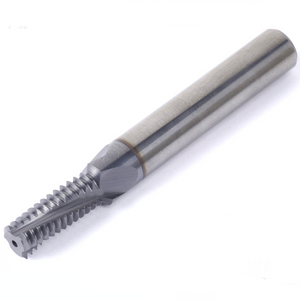

NPTF 3/8"x18 - 18 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00155
Thread Milling TM Solid Carbide HeliCool EX/IN 18 TPI NPTF Shank Diameter 12 (mm) Cutting Diameter 11.15 (mm) Tool Overhang 14.82 (mm) VTH Grade
- For Internal and EXTERNAL Machining
- For NPTF threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | NPTF |
| Pitch | 18TPI |
| EXT/INT | EX/ IN |
| Coolant | Yes |
| L | 14.82mm |
| L1 | 14.82mm |
| Le | 14.82mm |
| Cut Dia | 11.15mm |
| Z | 4 |
| Zt | 10 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC12111L14-EI18NPTFTMVTH |
| Shank Dia | 12mm |
104-00155 NPTF 3/8"X18 - 18 TPI PITCH HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
