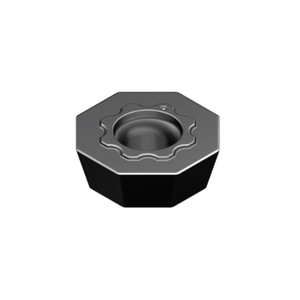

ODMW 060508 ET602 Carbide Milling Inserts (For General Purpose) - Europa Tool (10 Pack)
MI00019
Europa Tool Carbide Milling Inserts
ODMW 060508 ET602 - 43° Positive
Grade - ET602 Ultra dense PVD coating with optimal thermal resistance, suitable for most materials. PVD TiAlN coated P20 - P35, M20 - M30, K20 - K30, S15- S25, H20 - H30.
The price is for a box of 10 inserts.
| Insert Description |
ODMW 060508 |
| Grade |
ET602 |
| Height (IC) |
15.9mm |
| S |
5.6mm |
| Corner Radius (RP) | 0.8mm |
| Feed per tooth fz |
0.26 - 0.40 |
