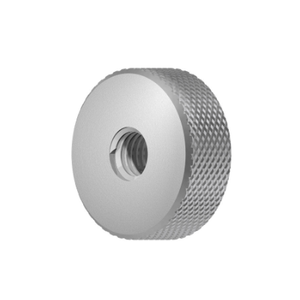

9 Pg Thread Ring Gauge Go DIN 40430 - Emuge Franken
L0200500.4154
Pg DIN 40430
Go thread ring gauge for gauging the external thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
*Please note these are not available on a guaranteed next day delivery*
| Thread | PG |
| Diameter | 9 |
| Nominal Diameter | 15.2mm |
| Threads per inch (TPI) | 18 |
| Rotation | R/H |
| Standard | DIN2285 |
| Gauge System | DIN 40431 |
