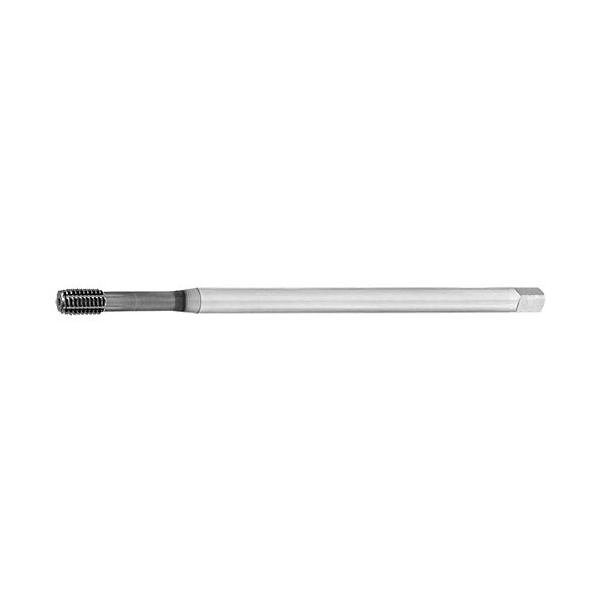

M2 x 0.4 S-LT-XPF Long Series Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48115125
S-LT-XPF - M2 x 0.4
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- With long shank for long reach threading
| Thread Type | M |
| Thread Diameter (TD) | 2mm |
| Pitch (TP) | 0.4mm |
| Functional Length (LF) | 80mm |
| Neck Length (LU) | 8mm |
| Shank Diameter (DCON) | 2.8mm |
| Drive Size (DRVS) | 2.1mm |
| Number of Flutes (NOF) | 0 |
| Pre-machined Hole Diameter (PHD) | 1.82 ~ 1.85 |
| Type | 1 |
