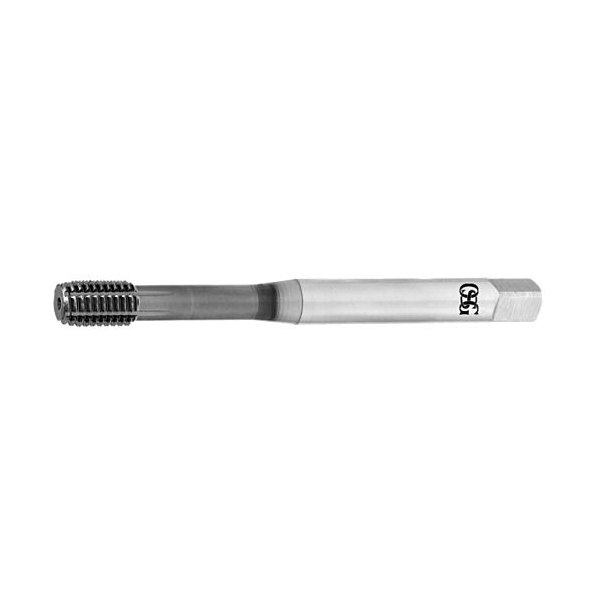

M10 x 1.5 S-XPF 6GX Oversize 6G Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48086169
S-XPF 6GX - M10 x 1.5
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
- For 6G internal thread tolerance
| Thread Type | M |
| Thread Diameter (TD) | 10mm |
| Pitch (TP) | 1.5mm |
| Oversize | 0.0320mm |
| Functional Length (LF) | 100mm |
| Neck Length (LU) | 39mm |
| Shank Diameter (DCON) | 10mm |
| Drive Size (DRVS) | 8mm |
| Number of Flutes (NOF) | 8 |
| Pre-machined Hole Diameter (PHD) | 9.26 ~ 9.35 |
| Type | 1 |
| DIN | DIN 2174 |
