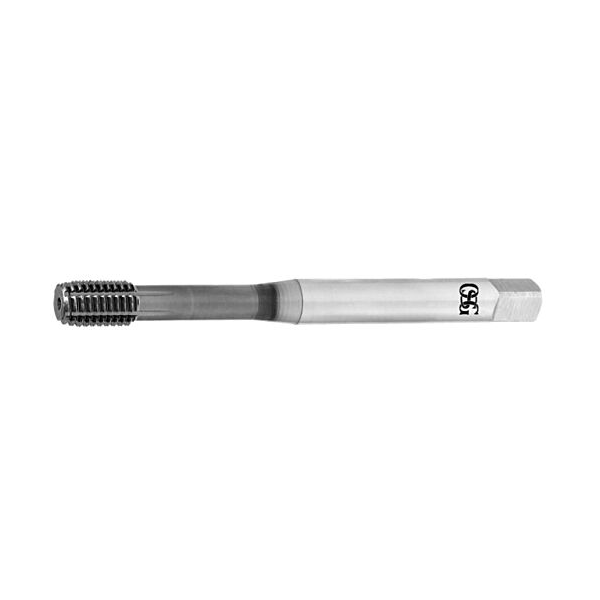

M10 x 1.5 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG
OSG-48030169
S-XPF - M10 x 1.5
Product features and benefits:
- First choice in quality and performance
- HSSE forming tap for through and blind holes
- Multilayer TiCN coating
- For general steels, stainless steels, aluminium
| Thread Type | M |
| Thread Diameter (TD) | 10mm |
| Pitch (TP) | 1.5mm |
| Functional Length (LF) | 100mm |
| Neck Length (LU) | 39mm |
| Shank Diameter (DCON) | 10mm |
| Drive Size (DRVS) | 8mm |
| Number of Flutes (NOF) | 8 |
| Pre-machined Hole Diameter (PHD) | 9.24 ~ 9.33 |
| Type | 2 |
| DIN | DIN 2174 |
