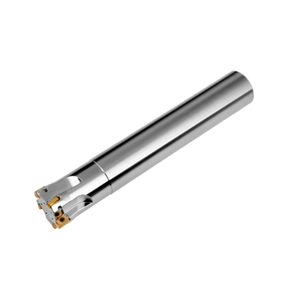

18E2R030A16-SBN10-C Dormer Pramet 11.4mm High Feed End Milling Cutter - DIN 1835A

18E2R030A16-SBN10-C

Dormer Pramet

  • £264.60


18E2R030A16-SBN10-C - High Feed End Milling Cutter

Features and Benefits:

  • High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts.
  • Through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling.
  • Maximum depth of cut of 1.0mm.
 Cutting diameter maximum (DCX) 18mm
Cutting diameter (DC) 11.4mm
Overall length (OAL) 150mm
Connection diameter (DCON) 16mm
Usable Length (LU) 30mm
Peripheral effective cutting edge count (ZEFP) 2
Rotational speed maximum (RPMX) 29200
