BNGX 10T308SR-M:M9325 Dormer Pramet Milling Insert - High Feed
BNGX 10T308SR-MM:M8340
BNGX 10T308SR-MM:M8340 - Milling Insert - High Feed

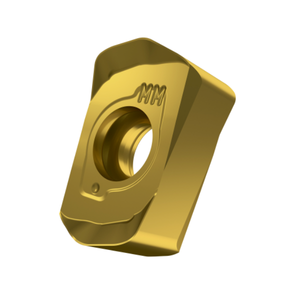

Double-sided milling insert BNGX 10T3, 82° parallelogram and high-feed design for a maximum depth of cut of 1.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and MM geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges M20-M40 and S20-S30 for machining of stainless-steel and superalloy with high feed cutters SBN10.
**This price is for a pack of 10 inserts**
| Corner radius (RE) | 0.8mm |
| Insert Size | 10 |
| Insert Type | X |
| Chipbreaker manufacturer's designation (CBMD) | MM |
| Grade | M8340 |
