42A07R-SMOBN10-C Dormer Pramet 35.4mm Shell Milling Cutter - High Feed - DIN8030-A
42A07R-SMOBN10-C

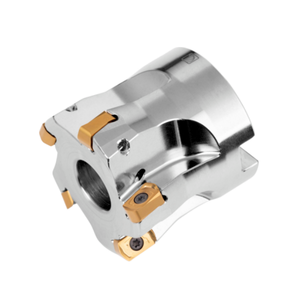

42A07R-SMOBN10-C - Shell Milling Cutter - High Feed
Features and Benefits:
- High feed cutter with positve/negative geometry which utilises 5 off BNGX 10T3.. or ANHX 10T3.. inserts.
- Through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling.
- Maximum depth of cut of 1.0mm.
| Cutting diameter maximum (DCX) | 42mm |
| Cutting diameter (DC) | 35.4mm |
| Connection diameter (DCON) | 16mm |
| Counterbore diameter connection bore (DCCB) | 14.1mm |
| Functional length (LF) | 40mm |
| Keyway width (KWW) | 8.4mm |
| Keyway Depth (KWD) | 5.6mm |
| Peripheral effective cutting edge count (ZEFP) | 7 |
| Cutting pitch differential (CPDF) | Yes |
| Rotational speed maximum (RPMX) | 19100 |
