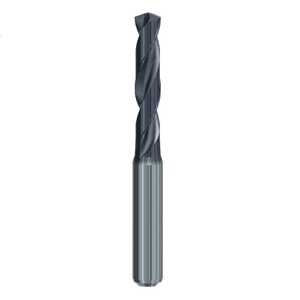

11.5mm Solid Carbide 3 x D MULTI Drill (For 1/2 UNF Tap) - Emuge Franken

TA109924.1150

Emuge

  • £72.80


For 1/2 UNF Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent 1/2
Diameter (D1) 11.5mm
Overall Length (l1) 102mm
Flute Length (l2) 55mm
Usable Length (l3) 40mm
Shank Length (l4) 45mm
Shank Diameter (D2) 12mm
Coating TIALN-T21
Tolerance m7
TA109924.1150 11.5MM SOLID CARBIDE 3 X D MULTI DRILL (FOR 1/2 UNF TAP) - EMUGE FRANKEN
