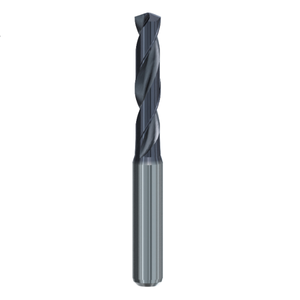

15.5mm Solid Carbide 3 x D MULTI Drill (For M18 Tap) - Emuge Franken
TA109924.1550
For M18 Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI
Features and Benefits:
- Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
- Special TIALN - coating for excellent wear resistance and drilling performance.
- With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
- Point Angle - 140°
| Tool Indent | M18 |
| Diameter (D1) | 15.5mm |
| Overall Length (l1) | 115mm |
| Flute Length (l2) | 65mm |
| Usable Length (l3) | 45mm |
| Shank Length (l4) | 48mm |
| Shank Diameter (D2) | 16mm |
| Coating | TIALN-T21 |
| Tolerance | m7 |
