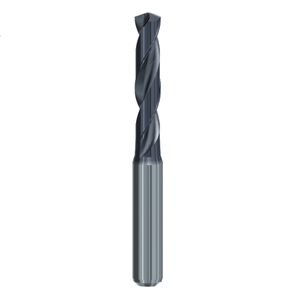

For 1" UNC Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI
Features and Benefits:
- Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
- Special TIALN - coating for excellent wear resistance and drilling performance.
- With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
- Point Angle - 140°
| Tool Indent |
1"
|
| Diameter (D1)
|
22.25mm |
| Overall Length (l1)
|
150mm |
| Flute Length (l2)
|
91mm |
| Usable Length (l3)
|
63mm |
| Shank Length (l4)
|
56mm |
| Shank Diameter (D2)
|
25mm |
| Coating |
TIALN-T21 |
| Tolerance |
m7 |
TA109924.2225 22.25MM SOLID CARBIDE 3 X D MULTI DRILL (FOR 1" UNC TAP) - EMUGE FRANKEN
