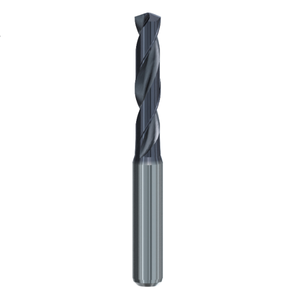

5.2mm Solid Carbide 3 x D MULTI Drill (For M6 x 0.75 MF Tap) - Emuge Franken

TA109924.0520

Emuge

  • £38.95


For M6 x 0.75 Metric Fine Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent M6 x 0.75
Diameter (D1) 5.2mm
Overall Length (l1) 66mm
Flute Length (l2) 28mm
Usable Length (l3) 20mm
Shank Length (l4) 36mm
Shank Diameter (D2) 6mm
Coating TIALN-T21
Tolerance m7
TA109924.0520 5.2MM SOLID CARBIDE 3 X D MULTI DRILL (FOR M6 X 0.75 MF TAP) - EMUGE FRANKEN
