6.9mm Solid Carbide 3 x D MULTI Drill (For 5/16 UNF Tap) - Emuge Franken - Precision Engineering Tools EW Equipment

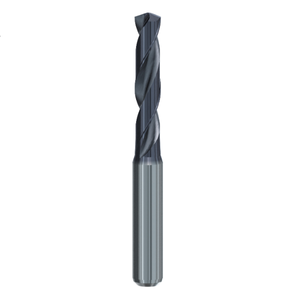

6.9mm Solid Carbide 3 x D MULTI Drill (For 5/16 UNF Tap) - Emuge Franken

TA109924.0690

Emuge

  • £72.15


For 5/16 UNF Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent 5/16
Diameter (D1) 6.9mm
Overall Length (l1) 79mm
Flute Length (l2) 34mm
Usable Length (l3) 24mm
Shank Length (l4) 36mm
Shank Diameter (D2) 8mm
Coating TIALN-T21
Tolerance m7
TA109924.0690 6.9MM SOLID CARBIDE 3 X D MULTI DRILL (FOR 5/16 UNF TAP) - EMUGE FRANKEN
