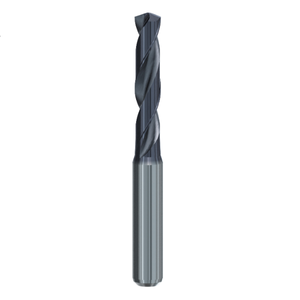

9.4mm Solid Carbide 3 x D MULTI Drill (For 7/16 UNC Tap) - Emuge Franken

TA109924.0940

Emuge

  • £54.25


For 7/16 UNC Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent 7/16
Diameter (D1) 9.4mm
Overall Length (l1) 89mm
Flute Length (l2) 47mm
Usable Length (l3) 35mm
Shank Length (l4) 40mm
Shank Diameter (D2) 10mm
Coating TIALN-T21
Tolerance m7
TA109924.0940 9.4MM SOLID CARBIDE 3 X D MULTI DRILL (FOR 7/16 UNC TAP) - EMUGE FRANKEN
