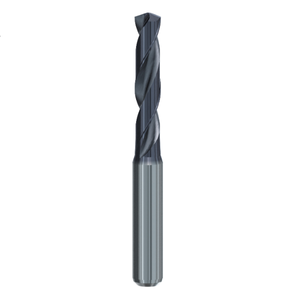

9mm Solid Carbide 3 x D MULTI Drill (For M10 x 1 MF Tap) - Emuge Franken - Precision Engineering Tools EW Equipment

9mm Solid Carbide 3 x D MULTI Drill (For M10 x 1 MF Tap) - Emuge Franken

TA109924.0900

Emuge

  • £54.30


For M10 x 1 Metric Fine Taps - TA109924 - Solid Carbide Drill - 3 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 K, 3xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent M10 x 1
Diameter (D1) 9mm
Overall Length (l1) 89mm
Flute Length (l2) 47mm
Usable Length (l3) 35mm
Shank Length (l4) 40mm
Shank Diameter (D2) 10mm
Coating TIALN-T21
Tolerance m7
TA109924.0900 9MM SOLID CARBIDE 3 X D MULTI DRILL (FOR M10 X 1 MF TAP) - EMUGE FRANKEN
