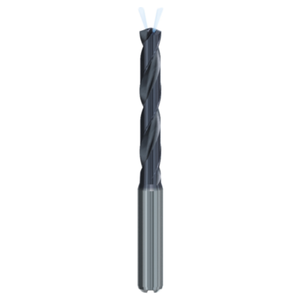

12.5mm Solid Carbide 5 x D MULTI Drill (For M14 x 1.5 MF Tap) - Emuge Franken

TA219924.1250

Emuge

  • £171.76


For M14 x 1.5 Metric Fine Taps - TA219924 - Solid Carbide Drill - 5 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 L, 5xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • Internal cooling channels for high process reliability.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent M14 x 1.5
Diameter (D1) 12.5mm
Overall Length (l1) 124mm
Flute Length (l2) 77mm
Usable Length (l3) 60mm
Shank Length (l4) 45mm
Shank Diameter (D2) 14mm
Coating TIALN-T21
Tolerance m7
