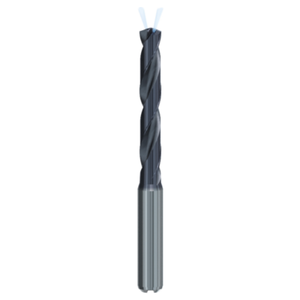

7.6mm Solid Carbide 5 x D MULTI Drill (For M8 x 1 MF Tap) - Emuge Franken - Precision Engineering Tools EW Equipment

7.6mm Solid Carbide 5 x D MULTI Drill (For M8 x 1 MF Tap) - Emuge Franken

TA219924.0760

Emuge

  • £72.15


For M8 x 1 Metric Fine Taps - TA219924 - Solid Carbide Drill - 5 x D MULTI

Features and Benefits:

  • Solid carbide twist drill EF-Drill Multi, DIN 6537 L, 5xD for universal use in different materials.
  • Special TIALN - coating for excellent wear resistance and drilling performance.
  • Internal cooling channels for high process reliability.
  • With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
  • Point Angle - 140°

Tool Indent M8 x 1
Diameter (D1) 7.6mm
Overall Length (l1) 91mm
Flute Length (l2) 53mm
Usable Length (l3) 43mm
Shank Length (l4) 36mm
Shank Diameter (D2) 8mm
Coating TIALN-T21
Tolerance m7
TA219924.0760 7.6MM SOLID CARBIDE 5 X D MULTI DRILL (FOR M8 X 1 MF TAP) - EMUGE FRANKEN
