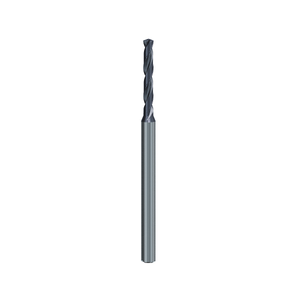

2.05mm Solid Carbide Micro MULTI Drill (For M2.5 Tap) - Emuge Franken
TE109924.0205
For M2.5 Taps - TE109924 - Solid Carbide Drill - Micro MULTI
Features and Benefits:
- Solid carbide twist drill EF-Drill Micro Multi, factory standard, for universal use in different materials.
- Special TIALN - coating for excellent wear resistance and drilling performance.
- Without internal cooling for shallow drilling depths.
- Point Angle - 118°
| Tool Indent | M2.5 |
| Diameter (D1) | 2.05mm |
| Overall Length (l1) | 38mm |
| Flute Length (l2) | 12mm |
| Usable Length (l3) | 9.35mm |
| Shank Length (l4) | 26mm |
| Shank Diameter (D2) | 3mm |
| Coating | TIALN-T21 |
| Tolerance | h6 |
