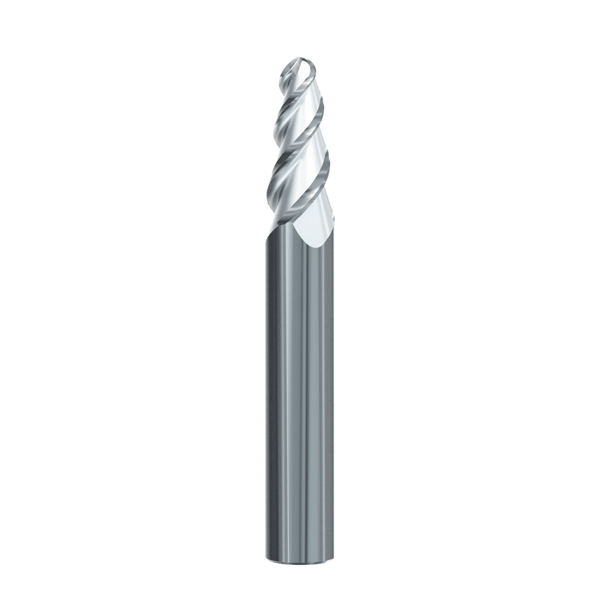

3° Taper / R3 x 22 - 3 Flute Solid Carbide Uncoated Tapered Ball Nose End Mill Turbine - Emuge Franken
3441.03030A
Turbine tapered carbide ball nose end mill for universal finishing applications in aluminium alloys and plastics.
Product features and benefits:
- Design with three flutes and various taper angles.
- Polished chip space avoids built-up edge formation and improves chip removal.
- Ideal for finishing turbine components or other complex 5-axis components.
- Multi-functional tool.
- Suitable for finishing.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

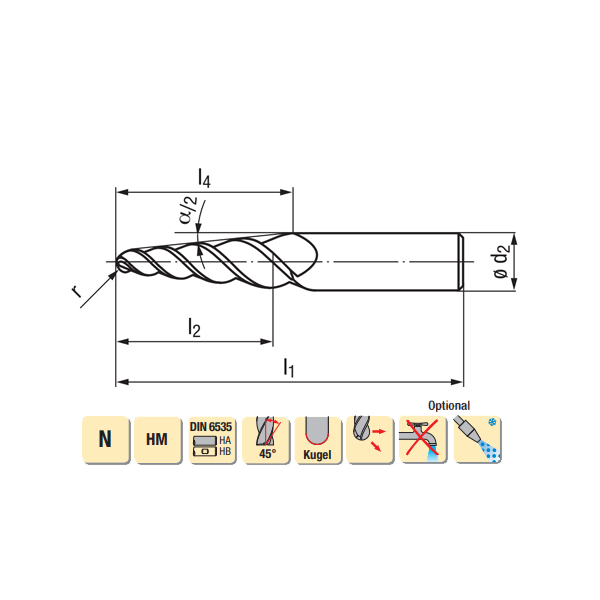

| Taper Angle (α/2) | 3° |
| Radius (r1) | 3mm |
| Radius Tolerance |
±0.01mm |
| Cutting Length (l2) | 22mm |
| Length of Shank Connection (l4) | 22mm |
| Overall Length (l1) | 72mm |
| Shank Diameter (Ød2) | 8mm |
| Shank Diameter Tolerance | h6 |
| Flutes (Z) | 3 |
| Tool Interface | Straight Shank |
| Tool Interface Norm | DIN 6535 |
| Coating | Uncoated |
| Internal Coolant Supply | Without Internal Cooling |
| Helix Angle | 45° |
