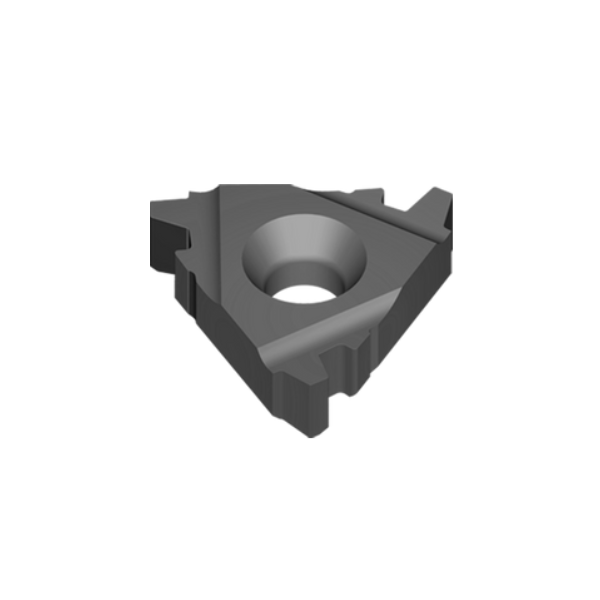

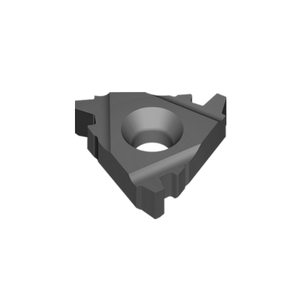

2IR1.5TRVTX Internal Trapezoidal RH Threading Insert VTX Grade - Vargus
021-00415
Trapezoidal - 2IR1.5TRVTX - 11IR1.5TRVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

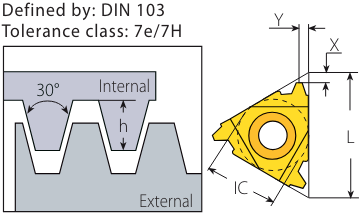

| IC | 1/4" (11IR) |
|
L |
11mm |
| Pitch (mm) | 1.5mm |
| h min | 0.90mm |
| X | 0.8mm |
| Y | 0.9mm |
| Tolerance | 7H |
| Anvil | - |
| Toolholder | NVR..-2 |
021-00415
