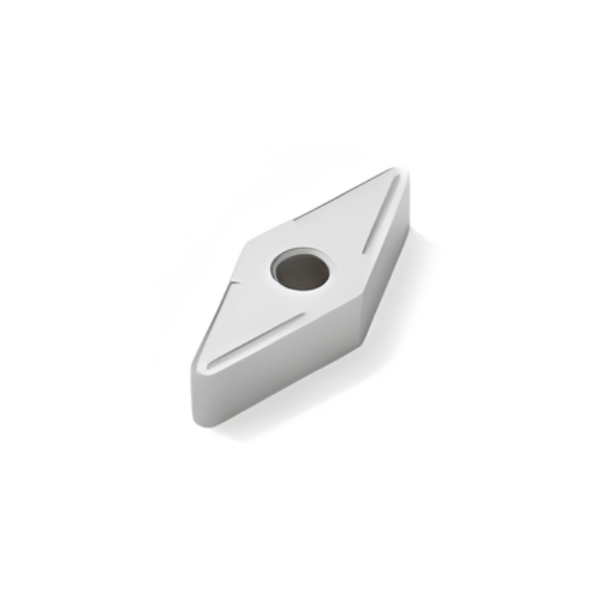

VNMG 160412-MR4 Carbide Turning Inserts (Pack of 5) - Grade: 883 - Seco
00009635 (C)VNMG 160412-MR4
GRADE: 883

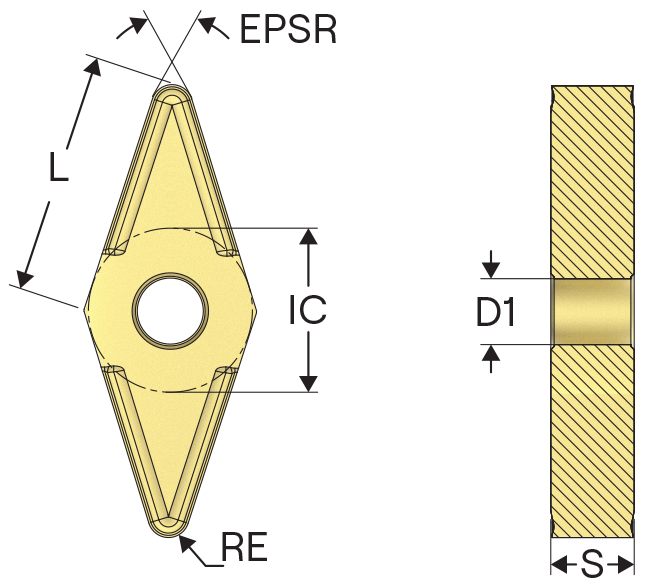

| Insert Included Angle (EPSR) | 35.0 deg |
| Fixing Hole Diameter (D1) | 3.8mm |
| Inscribed Circle Diameter (IC) | 9.53mm |
| Cutting Edge Length (L) | 16.60mm |
| Corner Radius (RE) | 1.20mm |
| Insert Thickness (S) | 4.76mm |
00009635 (C) VNMG 160412-MR4 CARBIDE TURNING INSERTS (PACK OF 5) - GRADE: 883 - SECO
