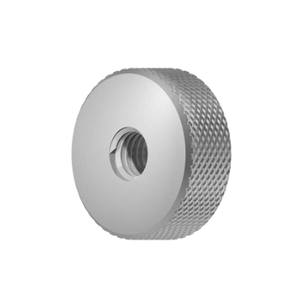

Nr. 10 - 24 UNJC 3A go Thread Ring Gauge - Emuge Franken
L0200510.5483
UNJC ASME B1.15
Go thread ring gauge for gauging the external thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
*Please note these are not available on a guaranteed next day delivery*
| Thread | UNJC |
| Nominal Diameter (mm) | 4.826mm |
| Nominal Diameter (inch) | 0.19" |
| Diameter | Nr. 10 |
| Threads per inch (TPI) |
24 |
| Rotation | R/H |
| Standard | DIN2285 |
| Gauge System | ANSI/ASME B1.2 |
