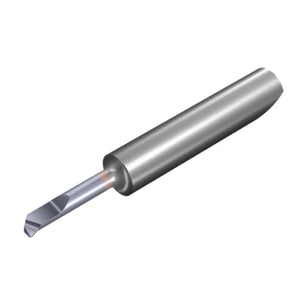

Vargus Microscope Boring & Chamfering 45° Insert - MS442CH4545L15LVBX - 4.2mm Min Bore Dia - 15mm Reach - Rad 0.2r (4mm Shank) - Left Hand
063-00253
MS442CH4545L15LVBX - Left Hand
Microscope Boring & Chamfering 45° Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MS442CH4545L15LVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
4.2 |
| L1 | 15 |
| Rad | 0.2 |
| F | 1.95 |
| S max | 0.7 |
| a | 3.95 |
| b | 2.8 |
| α° | 45 |
| L2 ref* | 18.4 |
| L ref | 35.4 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | LH |
