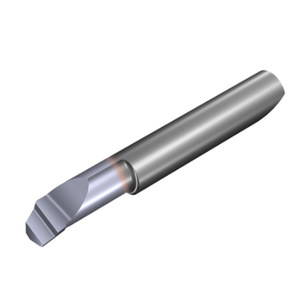

Vargus Microscope Boring Insert With Chip Former - M772BCFR20L35LVBX - 7.2mm Min Bore Dia - 35mm Reach - Rad 0.2r (7mm Shank) - Left Hand
063-00123
M772BCFR20L35LVBX - Left Hand
Microscope Boring Insert With Chip Former.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M772BCFR20L35LVBX |
| Shank Dia d(mm) |
7.0 |
| Min Bore Dia D min. (mm) |
7.2 |
| L1 | 35 |
| Rad | 0.2 |
| F | 3.4 |
| S max | 0.05 |
| a | 6.9 |
| b | 6.1 |
| α° | 9.4 |
| β° | 6 |
| L2 ref* | 36.4 |
| L ref | 61 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | LH |
